Miller AugmentedArc Workpiece

Description

These workpieces can be used on the AugmentedArc with any type of welding simulation application. Specially coded workpieces provide a wide range of training applications.

Butt Joint Workpiece – 277274

  • This workpiece used for the AugmentedArc simulates a butt joint where two workpieces butt together and a weld is made where the two pieces meet.

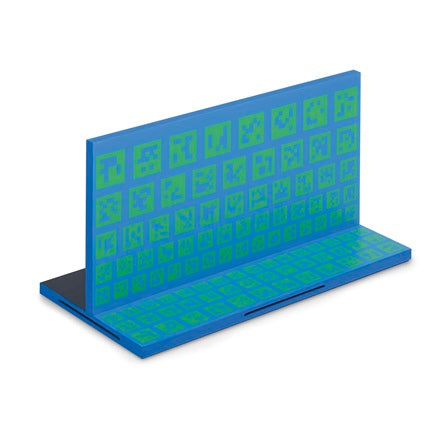

T-Joint Workpiece – 277270

  • This workpiece used for the AugmentedArc simulates a t-joint where two workpieces have surfaces lined up at 90 degrees to each other and are welded at the joint.

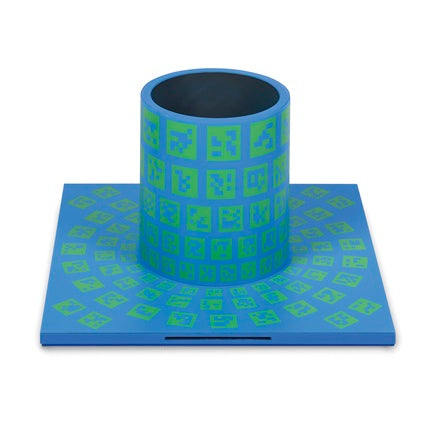

Pipe-to-Plate Workpiece – 277276

  • This workpiece used for the AugmentedArc simulates a pipe-to-plate joint where a pipe or tube is welded onto a base plate.

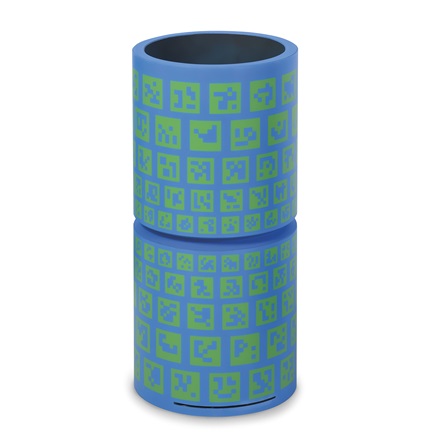

Butt Pipe Workpiece – 277275

  • This workpiece used for the AugmentedArc simulates a butt pipe joint where two pipes or tubes butt together and a weld is made where the two pieces meet.

Lap Joint Workpiece – 277273

  • This workpiece used for the AugmentedArc® simulates a lap joint where two workpieces are placed on an overlapping pattern on top of each other and welded together.

V-Groove Workpiece Kit – 288210

  • Includes two additional workpieces that can be added to the AugmentedArc package, a v-groove with backing and a v-groove without backing workpiece. These workpieces are used with the NCCER welding levels 1-2 exercises, allowing for the completion of all exercises in the curriculum.

*Select which option you need in the variant. All are sold separately.

Specifications

Click the image below to view the full spec sheet.

Additional information

Size

Lap & T Joint, Pipe & Butt, V-Groove Kit
