Lincoln Magnum Pro 250LX Spool Gun, 25ft – K3570-2 on Sale

Description

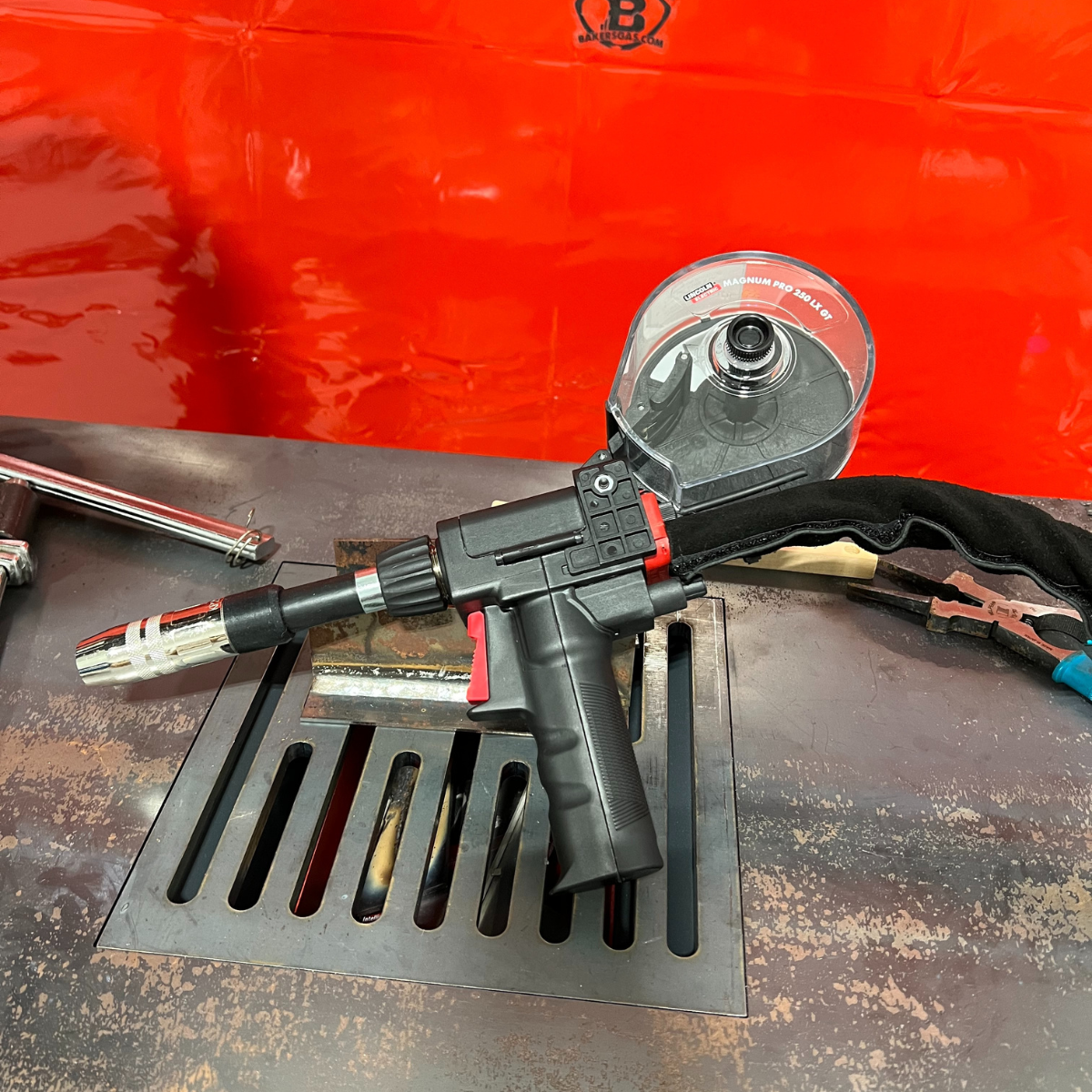

Lincoln Magnum Pro 250LX Spool Gun, 25ft – K3570-2

Description

The Lincoln Magnum Pro 250LX Spool Gun is designed to be used with the larger PowerMig machines such as the 256 or the 260.



Versatility Without Hassle

The Magnum PRO 250LX spool gun partners longer-lasting Magnum PRO contact tips with a durable spool gun design, making it the most versatile accessory for the POWER MIG family.

• Magnum PRO Expendables – Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time.

• Connects Easily and Effectively – Plugs directly into the POWER MIG 256 and POWER MIG 260 without the need for an additional adapter.

• Multi-Turn Wire Speed Adjustment – Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source.

• Tool-less Drive Roll Tension – Large thumbscrew makes fine adjustment of drive roll pressure effortless. Set screw allows for coarser adjustment if needed for steel.



Features

• Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time.

• Plugs directly into the POWER MIG 256 and POWER MIG 260 without the need for an additional adapter.

• Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source.

• Large thumbscrew makes fine adjustment of drive roll pressure effortless. Set screw allows for coarser adjustment if needed for steel.

Processes

• MIG Aluminum

• MIG Steel

Wire Diameter Range

• .030-3/64 in. (0.8-1.2) Aluminum

• .025-.035 in. (0.6-0.9) Steel

Included with Product

• KP2747-1A – Diffuser, Thread-on, Aluminum 550A

• KP2743-1-62RA – Gas Nozzle Assembly, Aluminum, 5/8 in., Recessed

• KP2745-364AT – Tapered Contact Tip, Aluminum, 3/64 in.

• KP2518-2 – Drive Roll, Aluminum, .030/.035 – 3/64 in.

• KP2879-5 – Barrel Liner, 180°

• KP2773-1 – Insulator, 550A

Specifications

Click the image below to view the full specification sheet

Compatible with

Lincoln Power MIG 256

Lincoln Power MIG 260

Lincoln Power MIG 350
